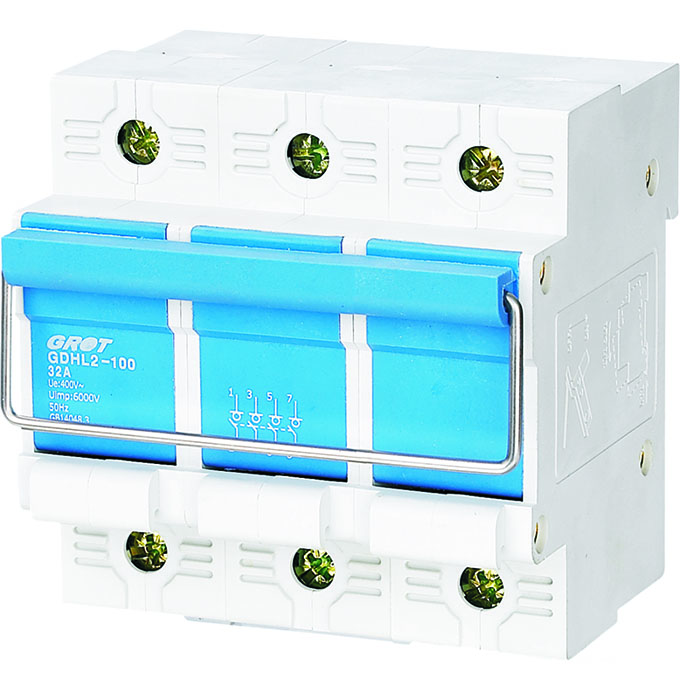

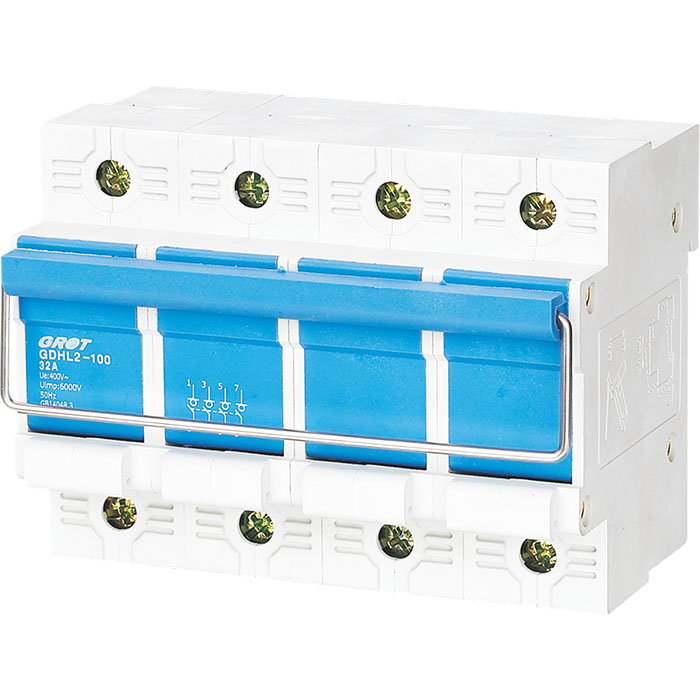

Disconnector switch — GDHL2-100
GDHL2-100 series isolating switch is used in AC 50Hz rated working voltage, up to 400V, the agreed heating current up to 100A, suitable for isolating the power supply while the line undergoing the repair so as to prevent accidental closing, to ensure the safety of the maintenance personnel. It is widely used in industrial and mining enterprises, high-rise buildings, commercial and residential places.
Comply with the IEC60947-3、GB/T 14048.3 Standard
Frame Size：100
Current Grade：32-100A
Rated Short-time Withstand Current：Icw:1.2 kA -t=1s
Rated Short-circuit Connect Capability：Icm（Peak Value）：1.692kA
Poles：1、2、3、4P
Product inquiry
Telephone
WeChat

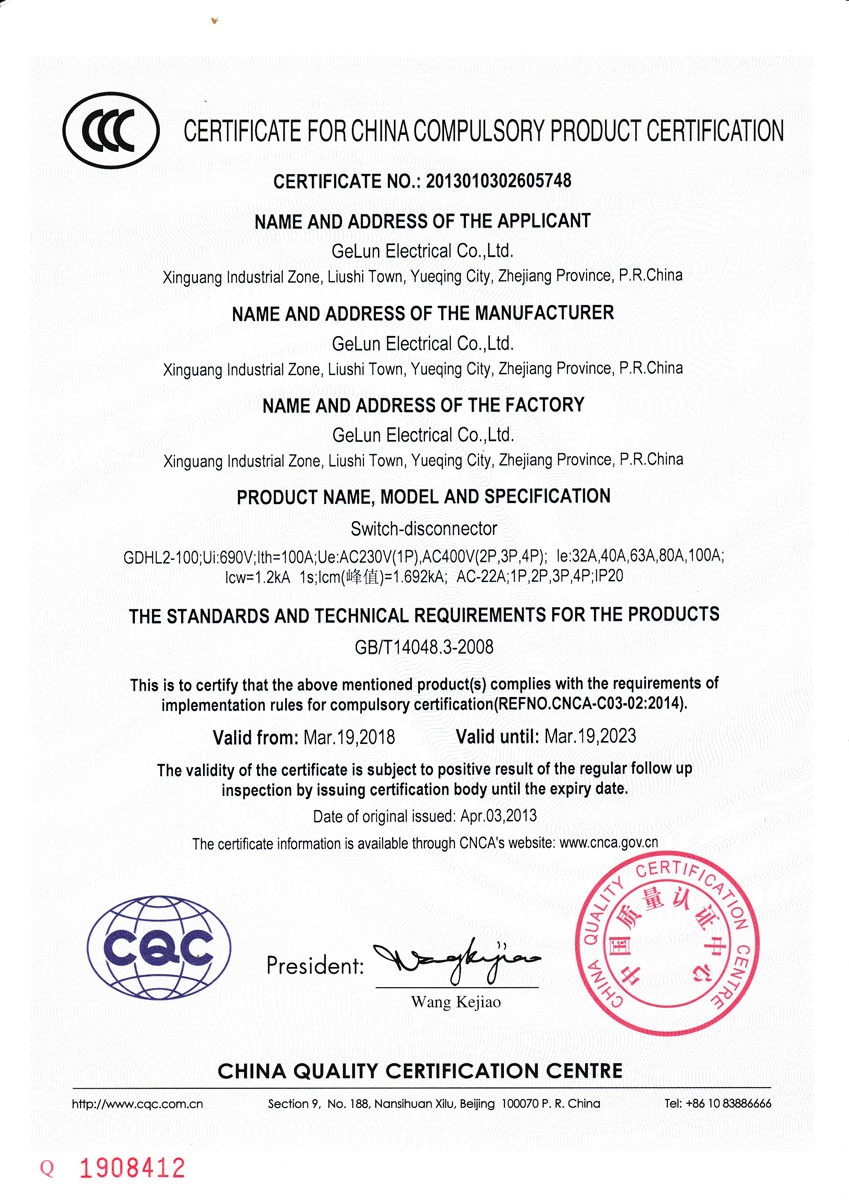

GDHL2-1001Certificate
